Armoured Cables

Sourced from reputable manufacturers in the USA, India, and China, these cables are engineered to withstand harsh environments and provide exceptional protection for your critical fiber optic connections. Whether it’s outdoor installations, industrial settings, or challenging terrain, our Fiber Armoured Cables deliver unparalleled performance and durability.

Products

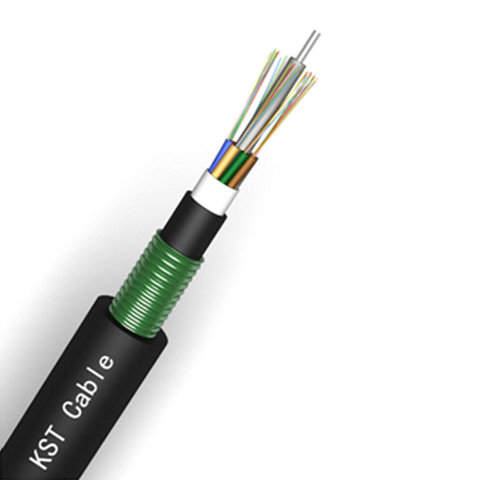

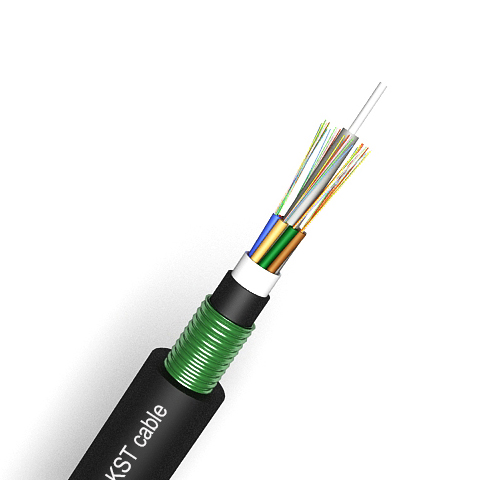

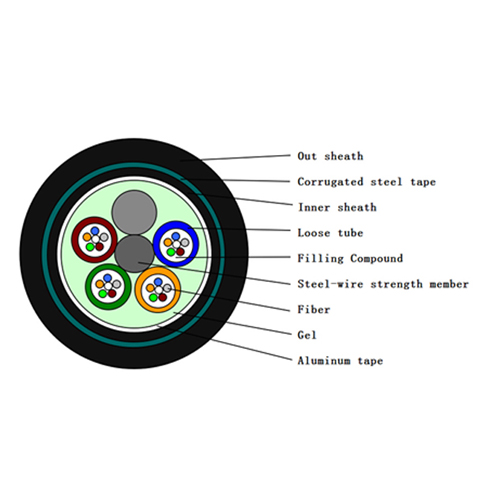

Double Armored and Double Sheathed Stranded Outdoor Optical Cable GYTA53

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath

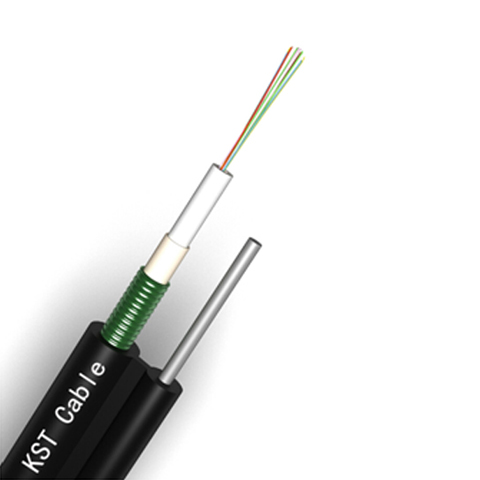

Figure 8 self-supporting Center Tube Optical cable GYXTC8S

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound. Loose tubes filled with water proof compound to ensure compact and longitudinally water blocking, this part of cable accompanied with the wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.

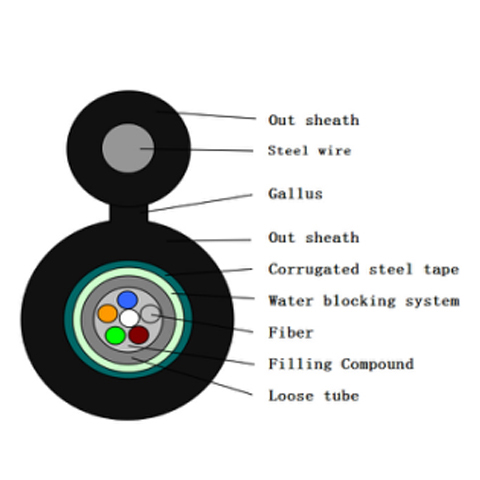

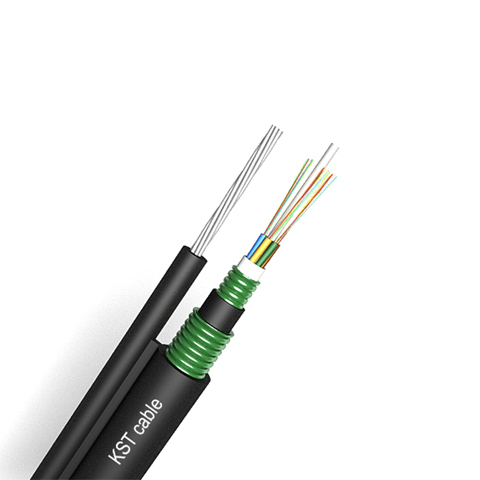

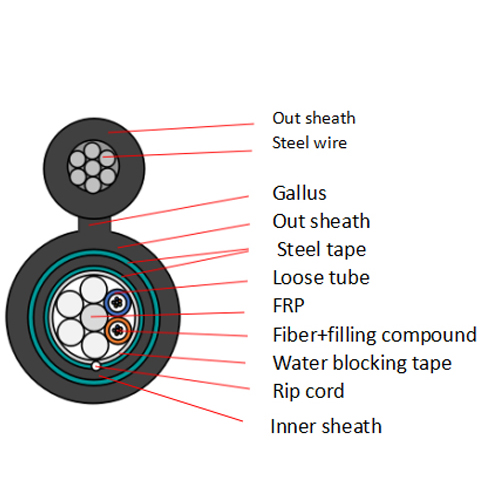

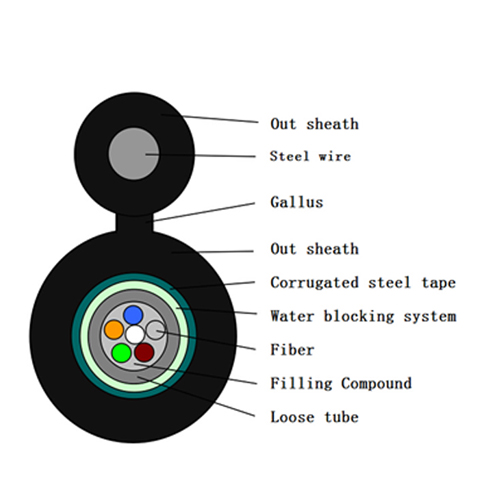

Figure 8 Water Blocking Armored Fiber Optic Cable GYTC8S53

The fibers are placed in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A FRP locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After the corrugated steel tape is applied around the cable core, then it is wrapped with inner sheath.Then the PSP is around the inner sheath, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.

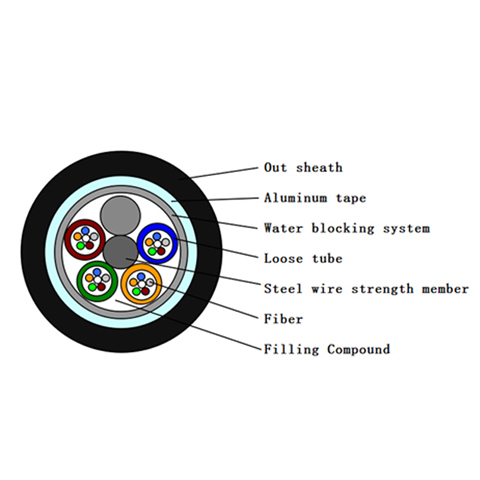

GYTA Aluminum Tape Armored Fiber Optic Cable For Aerial And Duct

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The Aluminum tape is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.

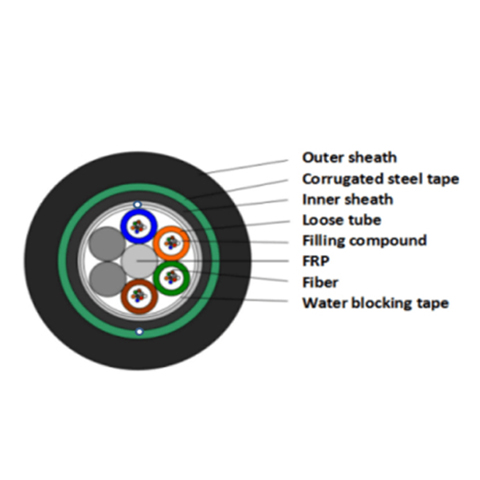

GYTFY53 Armored Fiber Optic Cable For Direct Burial

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A fiber reinforced plastic(FRP), sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a delectric strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the water blocking tape to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath..

Single Mode Fig-8 Armored Fiber Optic Cable Steel Wire Supported GYXTC8S

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound. Loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the steel wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.

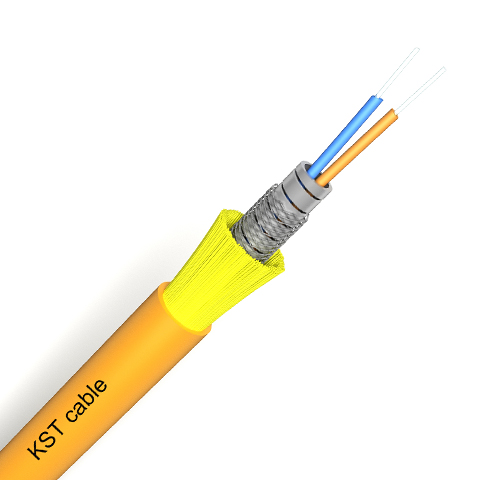

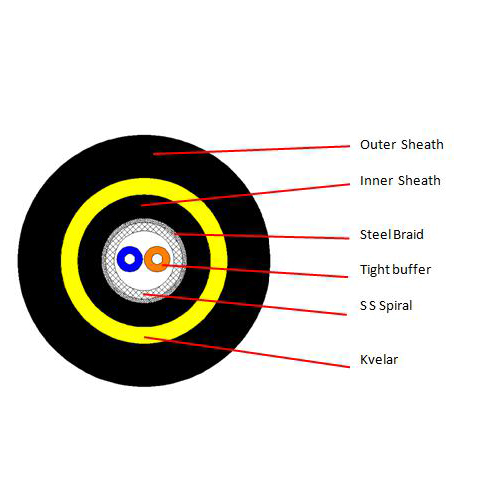

Steel Armored Braiding Fiber Optic Cable

The fibers are positioned in a Tight buffer which is made by LSZH. The tubes have protect by double sheath. in the tight buffer outside,steel braid and s s spiral protect the fiber either,Between the inner sheath and the outer sheath is wrapped with a layer of Kvelar, applied to keep the cable compact . The cable is completed with a polyethylene (PE) sheath.

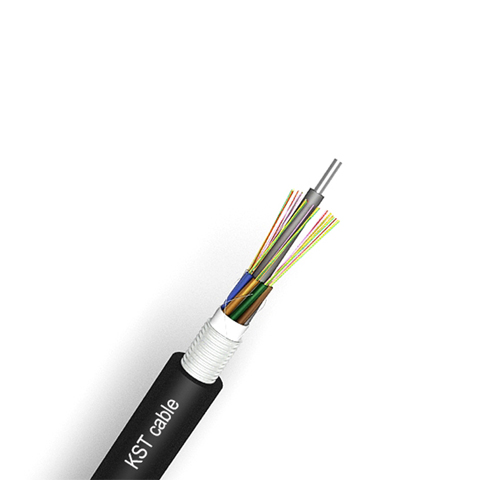

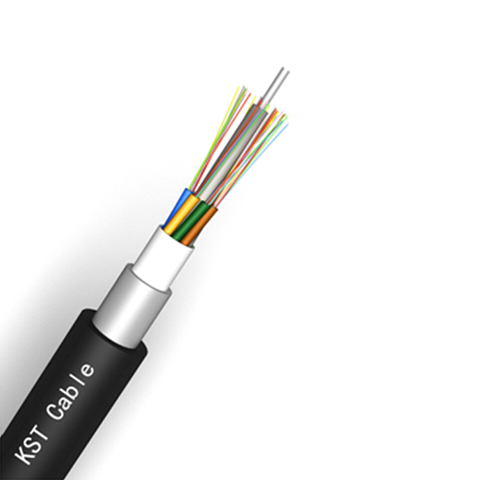

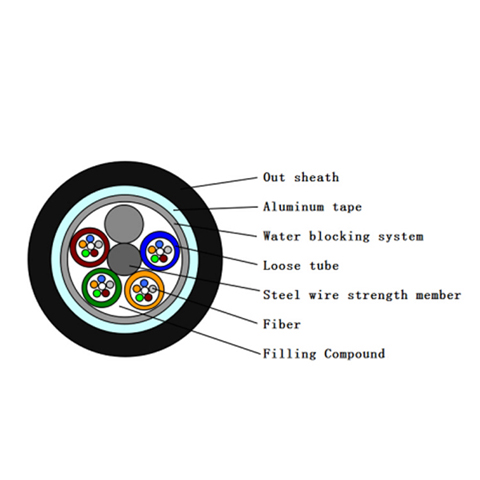

Steel Tape Layer Loose Tube Outdoor Cable GYTA

The fibers, single mode or muti mode , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Aluminum tape, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The Aluminum tape is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.
